.Overview

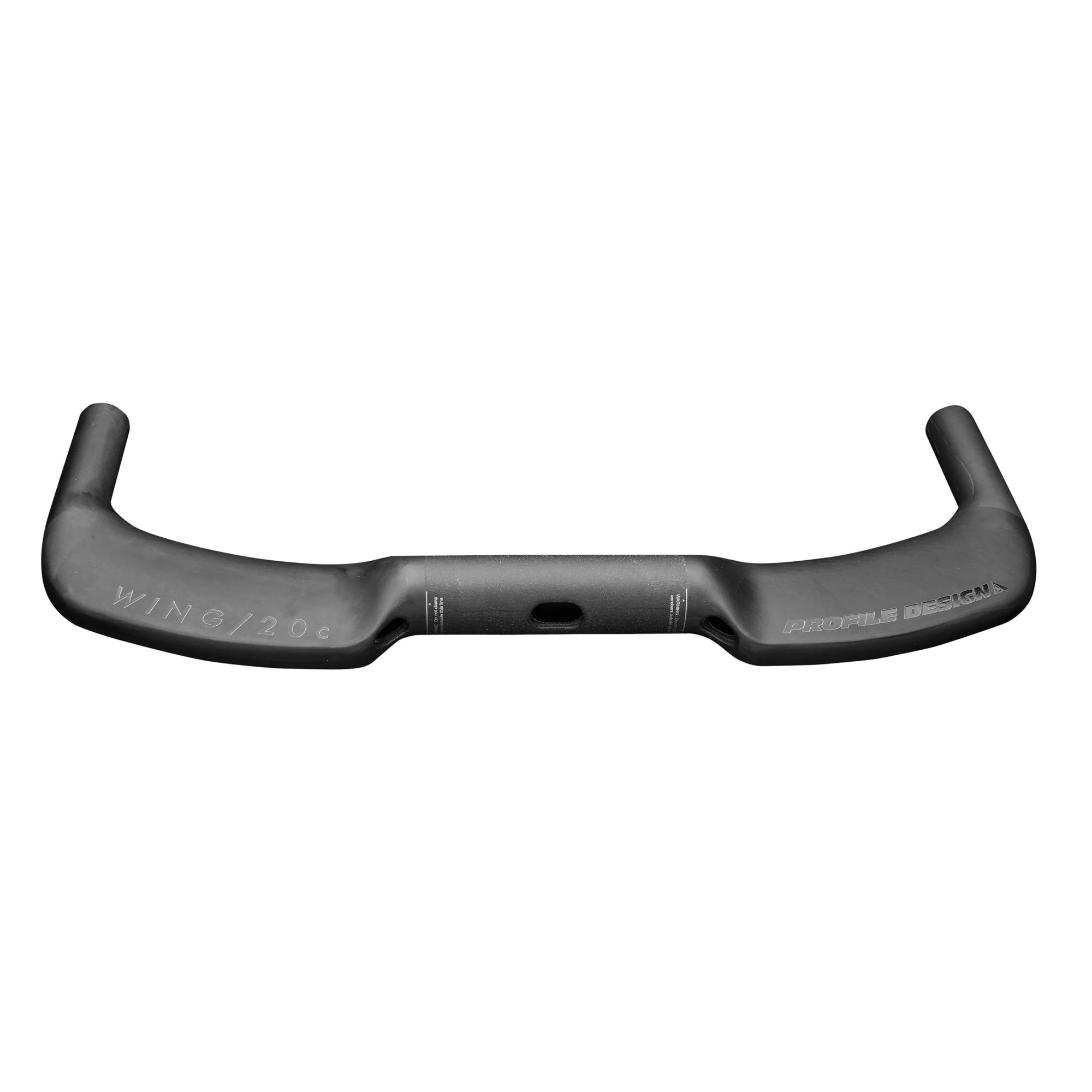

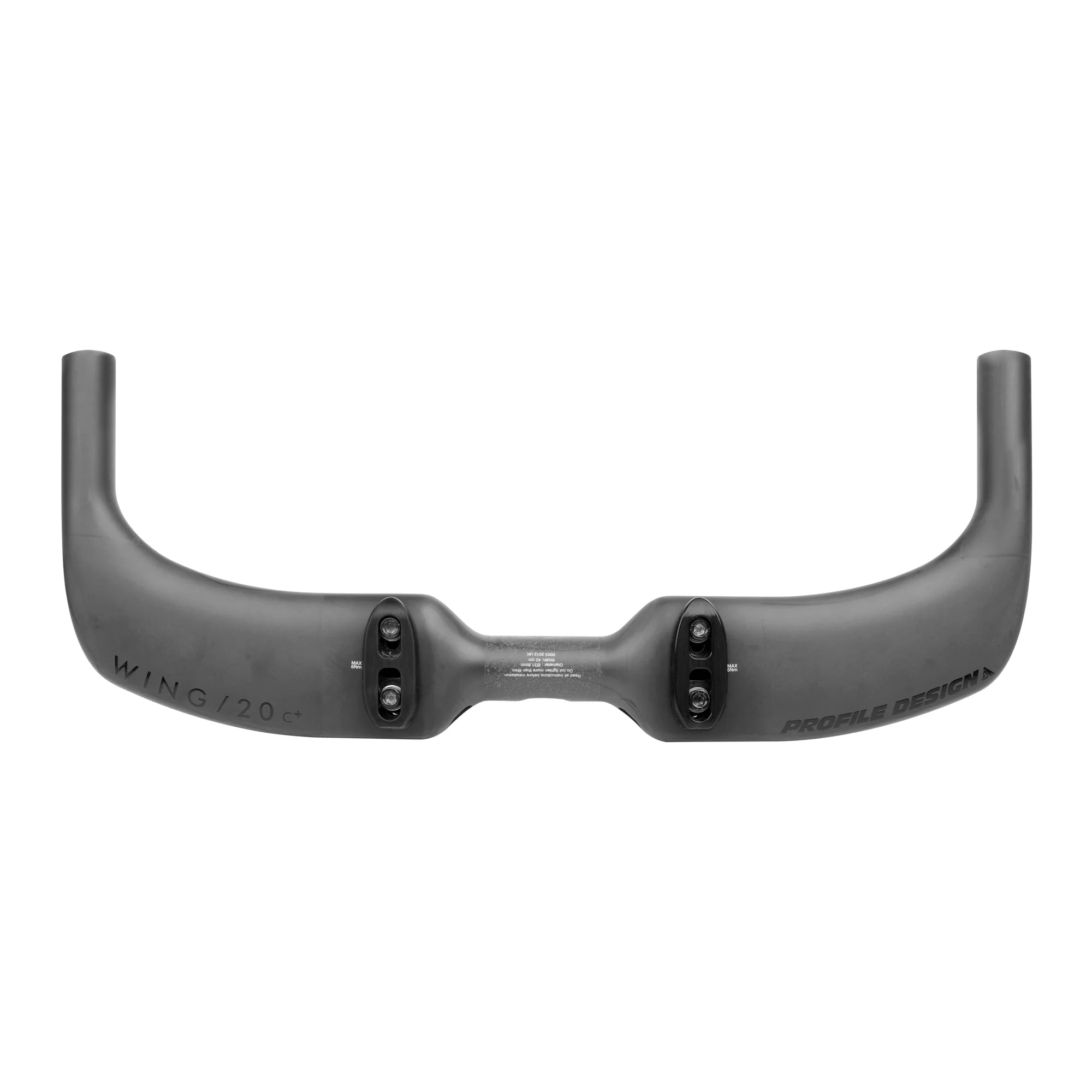

 The WING/20c features our ne shape that is optimized for aerodynamics as well as strength and stiffness.  It also offers the ability to alter the hand grip position by 20mm.

 The truncated aerofoil shape of the basebar is a key element of the balance between aerodynamics, strength and comfort.

Fit Data

• The WING/20c is available in the following widths: 38, 40, 42cm
• New shape that transitions from the wing to the grip more smoothly -  aiding air flow and giving a better platform for the rider to rest their hands.

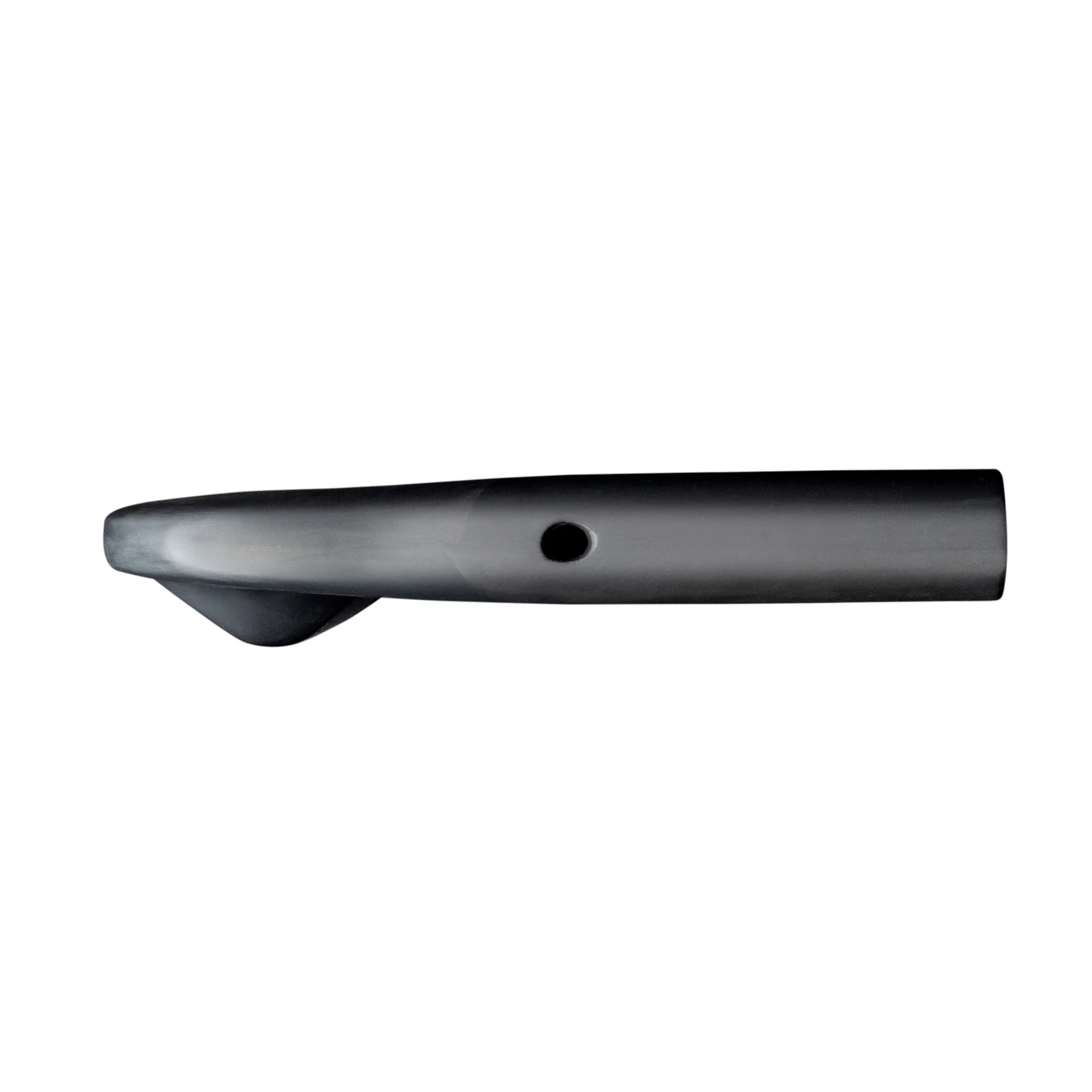

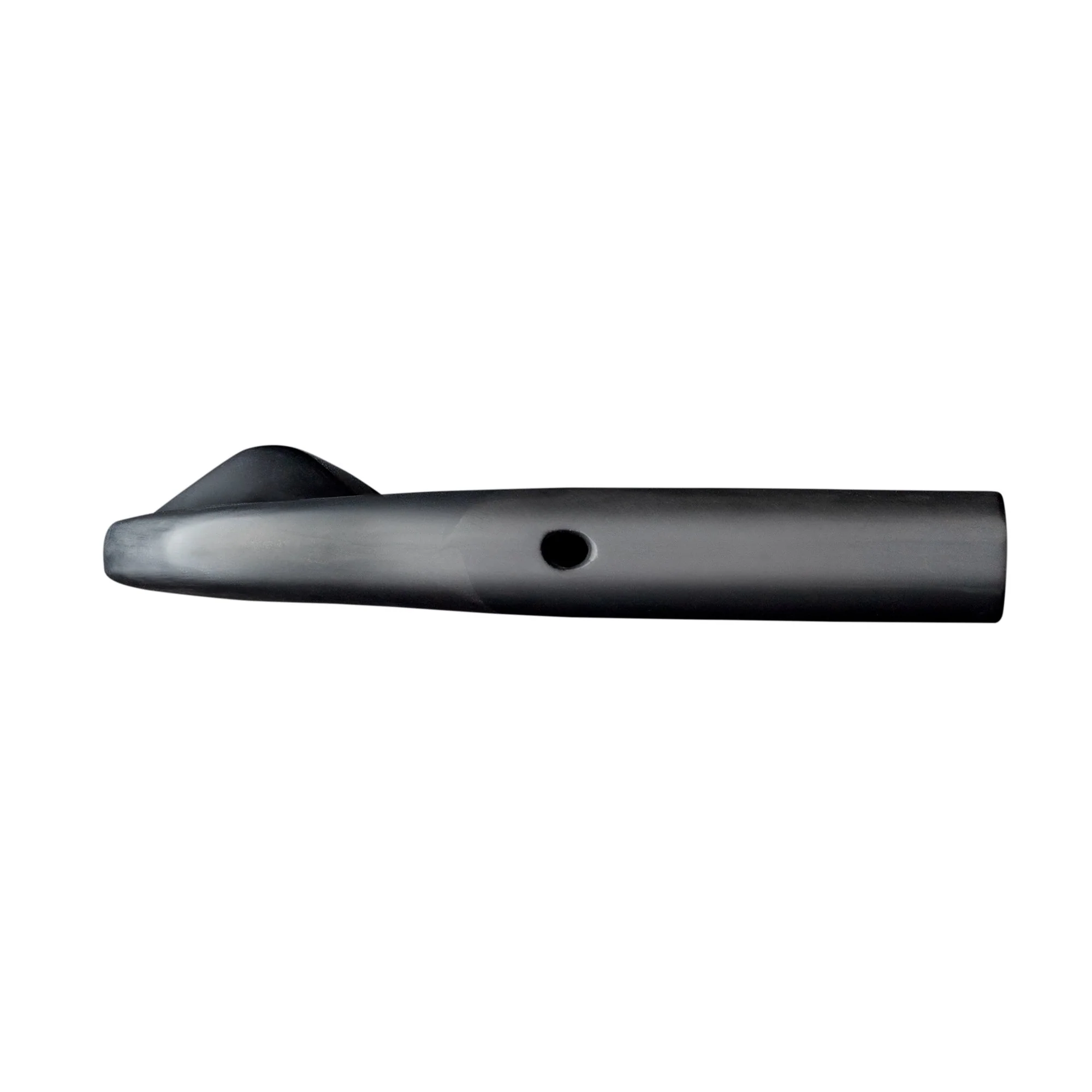

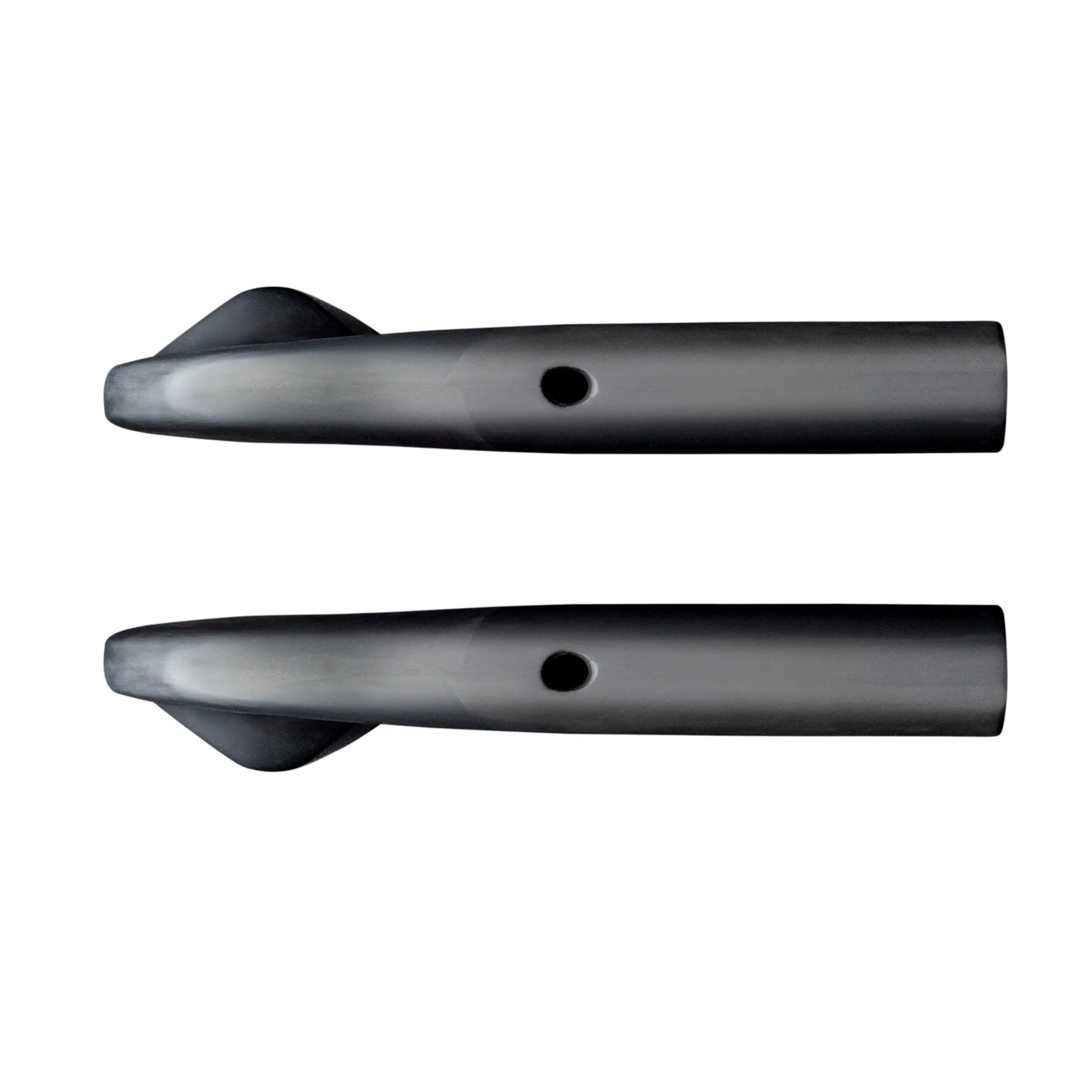

• Ability to flip the bar makes it easier for riders to find a comfortable position by the brake levers.
• Cable routing has been designed with flip feature and modern tri bikes in mind.

Accessories

The WING/20c can be used with any Profile Design clip-on aerobar, brake lever and stem option.

Tech Specs

• Weight: 200g (38cm)
• Width: 38, 40, 42cm (center to center)
• Center Clamp Diameter: 31.8mm
• Clamp Width: 100mm (on all bar sizes)
• Clip Compatible: Yes
• Material:  Carbon
• Finish: Matte Black
• Pursuit Reach: 150mm (center to tip)
• Grip Offset: ± 10mm (20mm)
• Pursuit OD/ID: 24 / 19.8mm
• Drop Outsweep: No

Tech Guide

• Only compatible with internally routed brake levers
• Di2 Compatible

Torque settings

• Stem Clamp: 6Nm
• Aerobar Clamp: 6Nm

Manual

WING/20c Instillation Instructions
