Overview

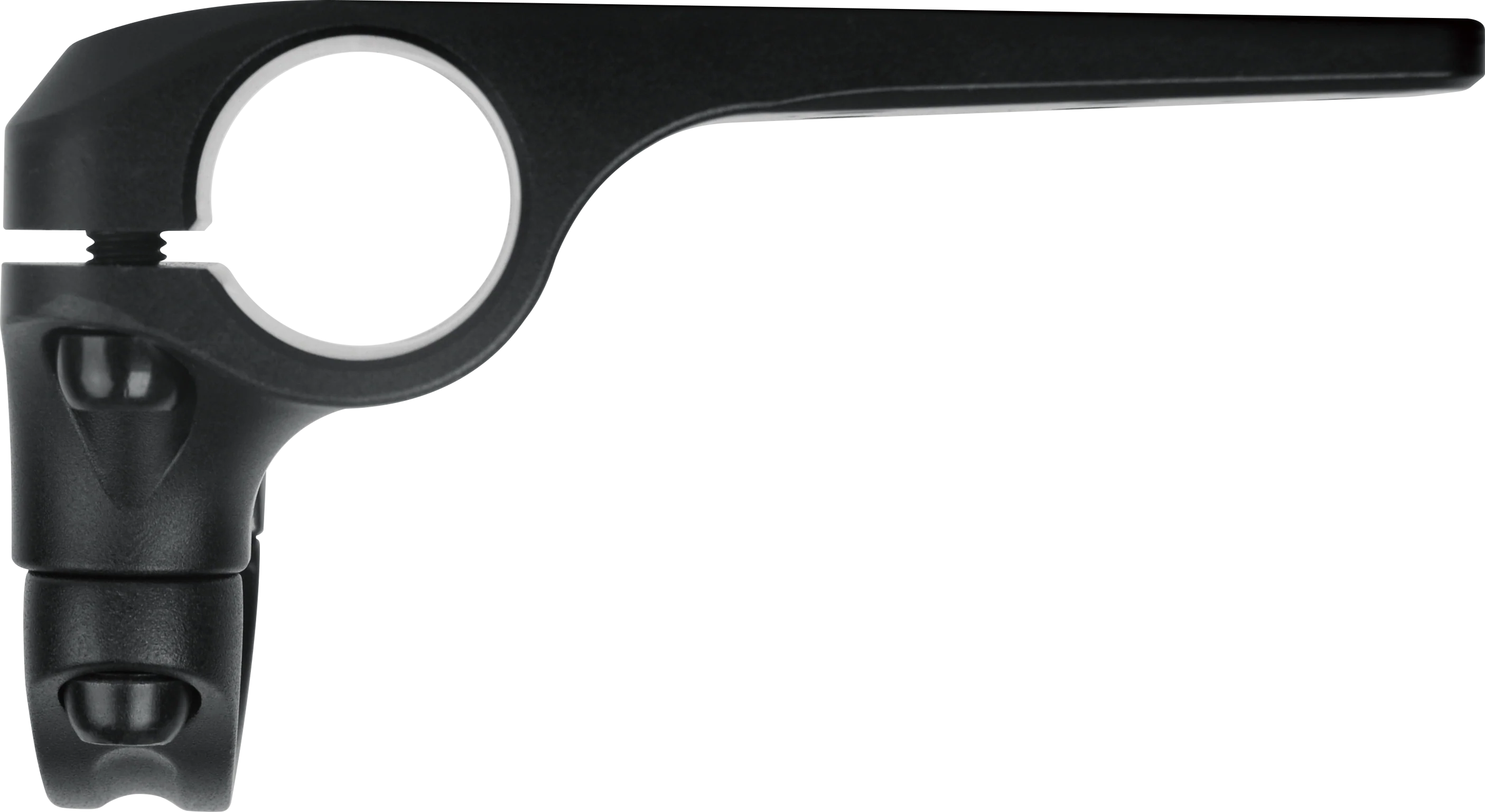

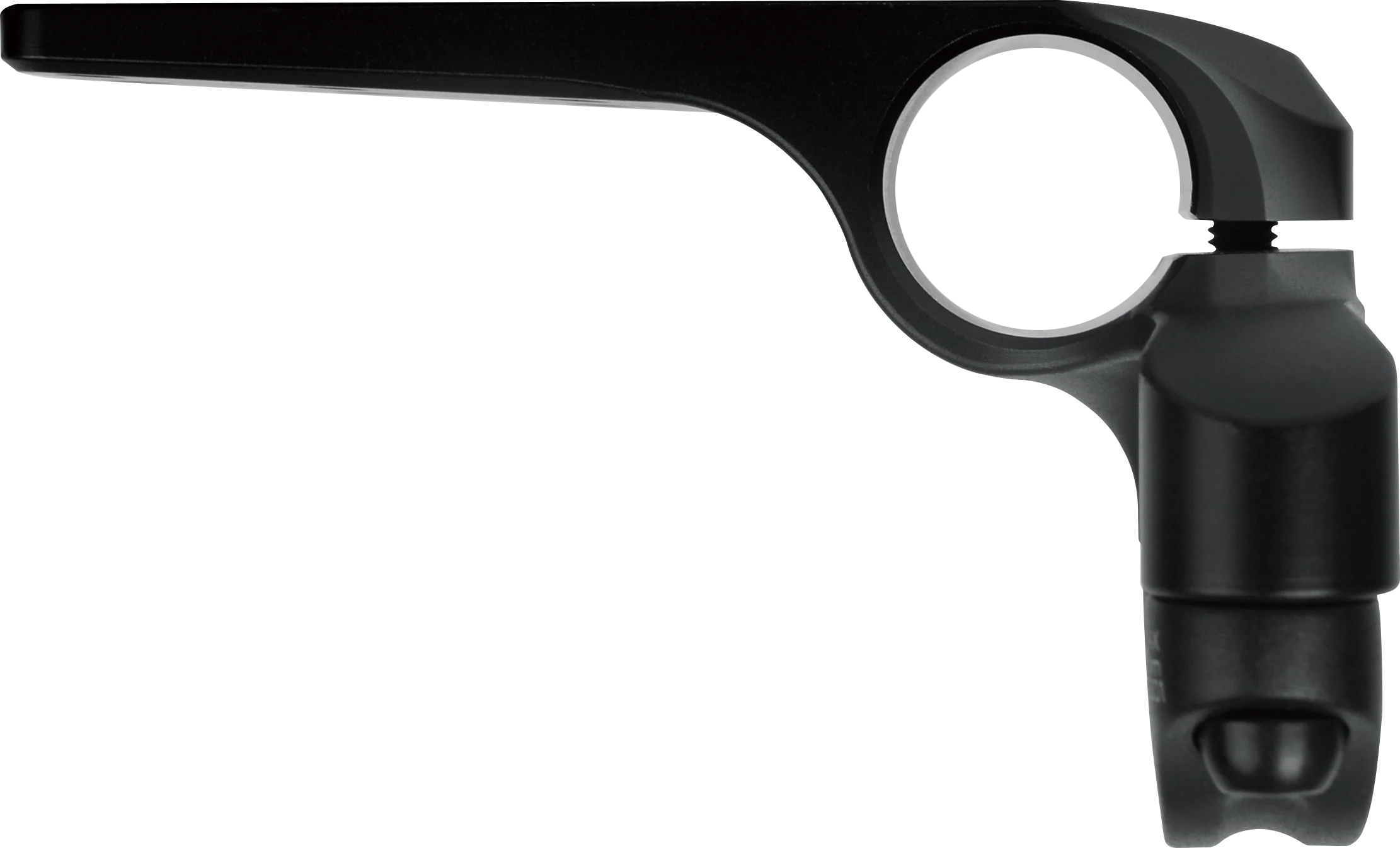

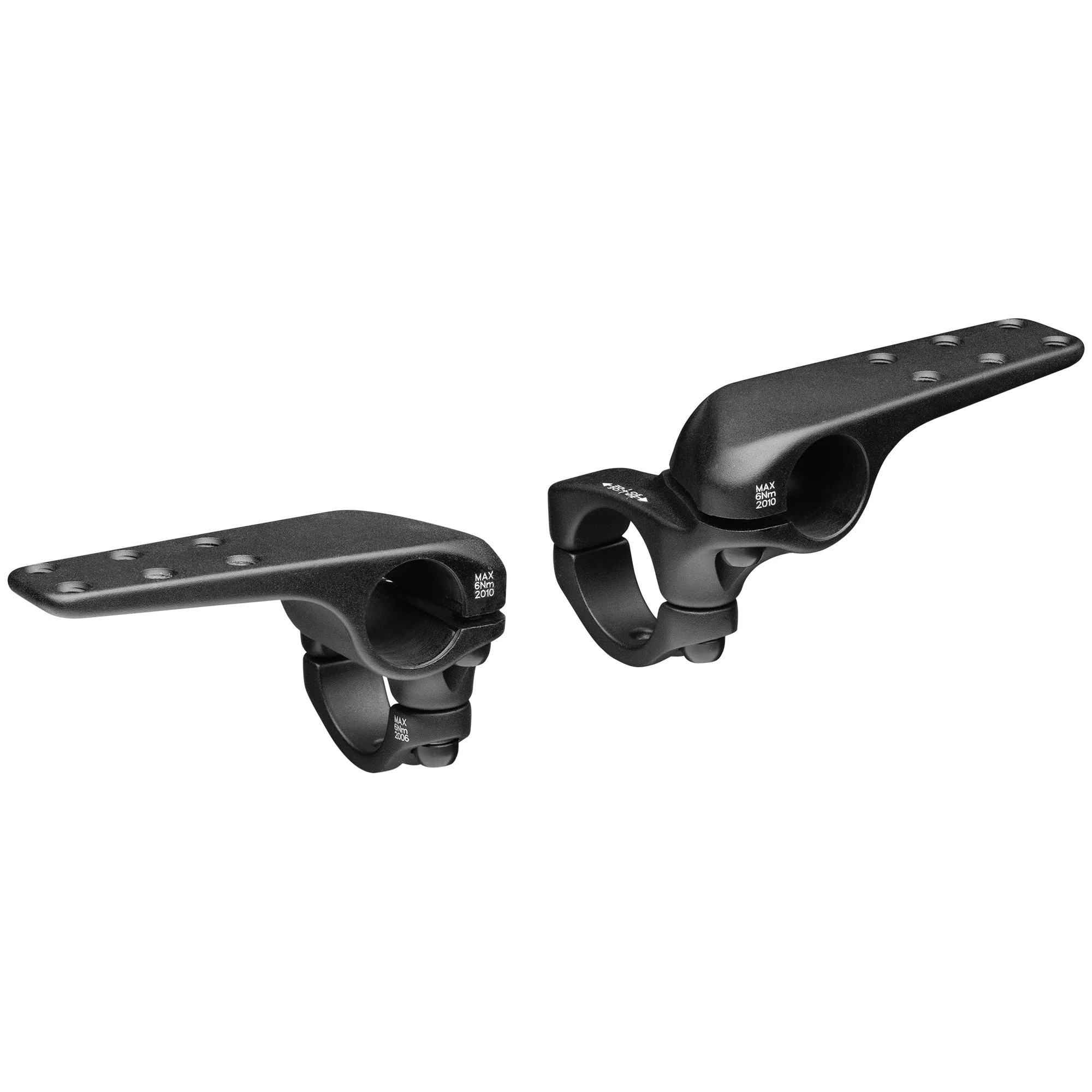

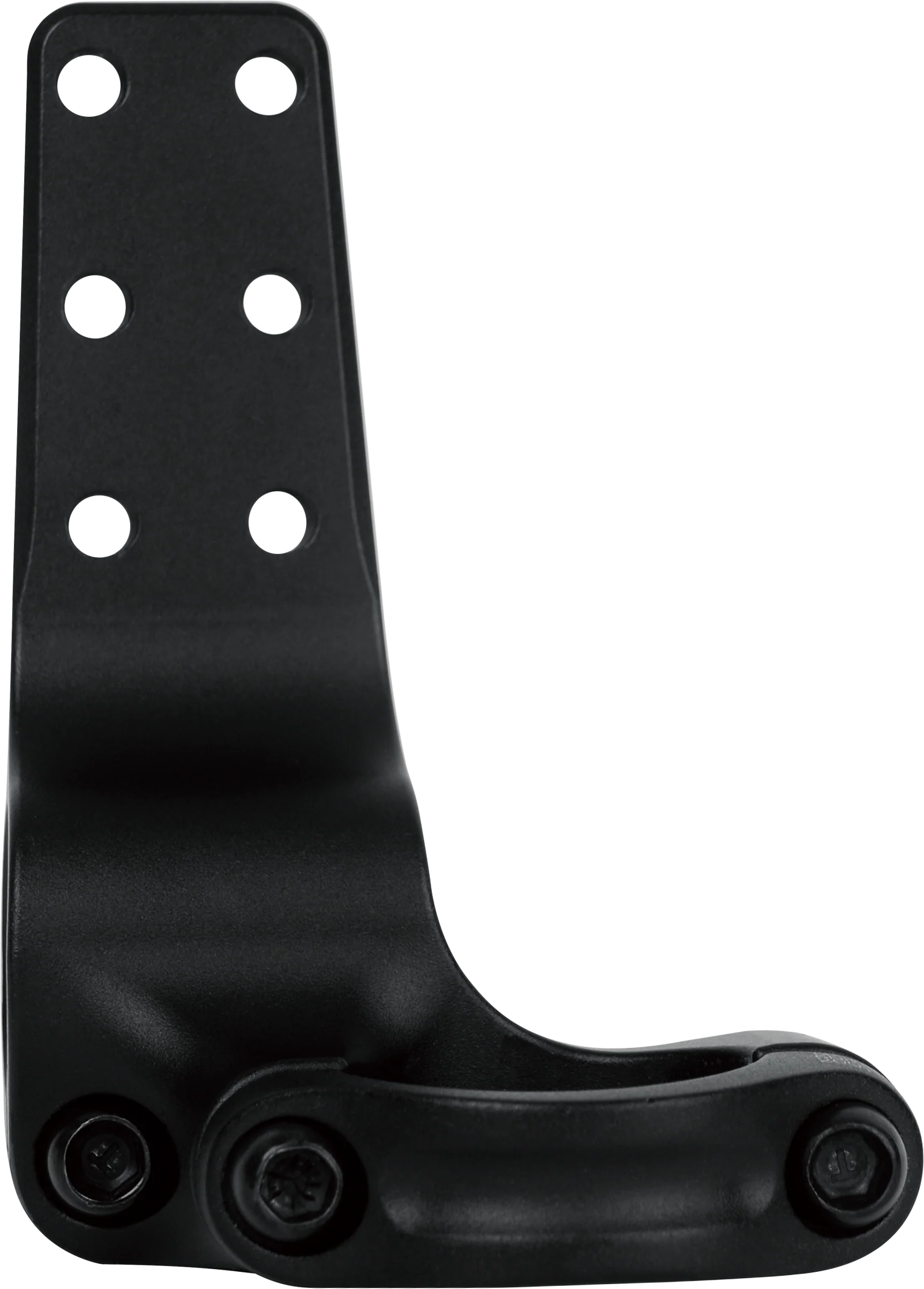

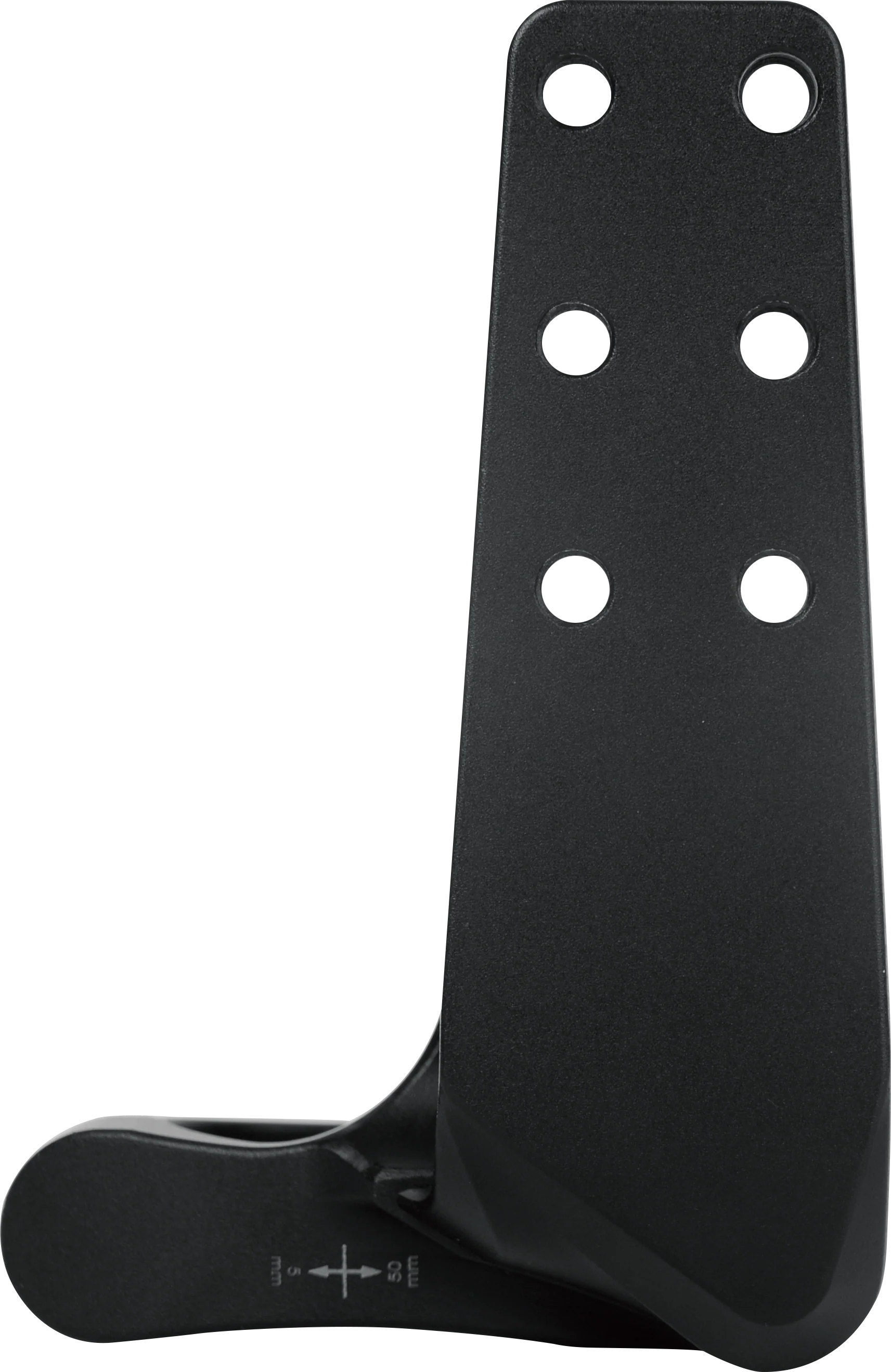

The Neosonic bracket offers our new generation fit range with a large offset to suit a range of applications.

This bracket is designed to give riders the option to move the armrests well behind the basebar in order to adopt a compact position.

• Well suited to use with road and gravel bikes to allow a comfortable aero position without moving the saddle.

Tech Specs

• Bracket: Neosonic (6061-T6 aluminum)
• Armrest Stack: 42.5mm
• Armrest Offset: 25mm
• Armrest Width Adjustment: 37mm
• Handlebar Clamp Diameter: 31.8mm
• Extension Clamp Diameter: 22.2mm
• Color: Black
• Weight: 256g

Tech Guide

Torque settings (all bolts are M6)

• Bar Clamp: 6Nm
• Extension Clamp: 6Nm
• Armrest Bolts: 4.7Nm

Manual

Neosonic Bracket Kit Installation Instructions
